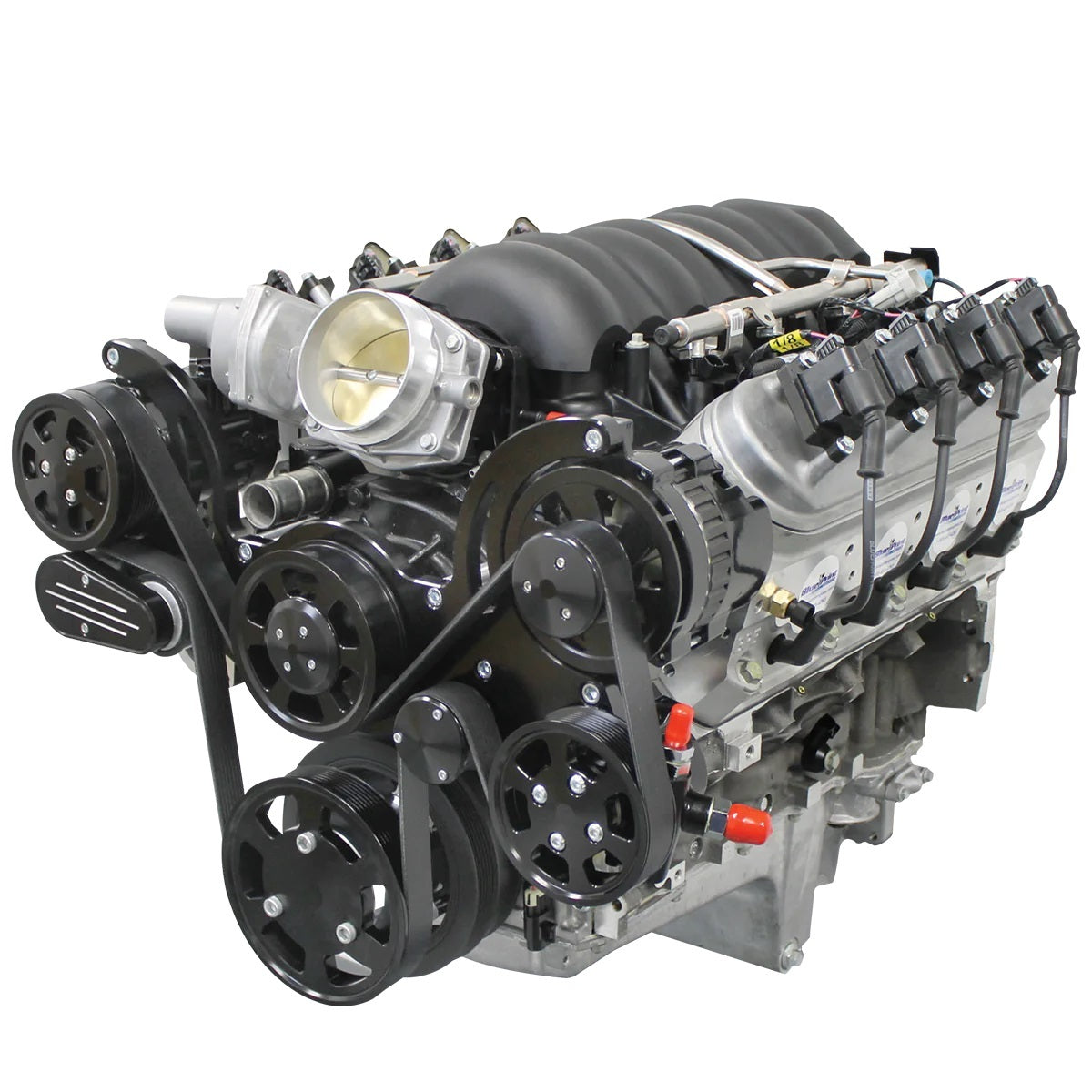

BluePrint GM LS 376 c.i. ProSeries Crate Engine – 530 HP, Fuel Injected, Deluxe Dressed with Black Pulley Kit

530 HP LS Power with a Sleek Black Pulley Kit – Ready for Your Build

The BluePrint GM LS 376 c.i. ProSeries Deluxe Dressed Crate Engine delivers unmatched performance and modern styling, making it perfect for Camaro, C10, Chevelle, Corvette, and other Chevy classics. With 530 horsepower and 495 ft.-lbs. of torque, this engine is equipped with a black front accessory drive system, combining power with a sleek, clean look.

Built with a high-strength cast iron block, LS3 aluminum heads, and a hydraulic roller cam, this fuel-injected powerhouse provides top-tier reliability and performance. Whether you’re building a street cruiser, track beast, or resto-mod, this engine is ready to bring your project to life.

What’s Included?

This deluxe dressed engine includes everything you need for a turn-key installation:

• Black Front Accessory Drive System:
  • LT1-style 150-amp alternator.
  • LT1-style water pump.
  • Type II power steering pump with baffled edges.
  • Compact-style A/C compressor.
• Low-Profile Swap Oil Pan for versatility in engine swaps.
• Loaded Intake Manifold with fuel injectors and rail.
• Drive-By-Wire (DBW) Throttle Body for precise throttle control.
• Coil Packs, Spark Plugs, and Wires for a reliable ignition system.
• Harmonic Balancer for smooth operation.
• Complete Engine Controller: Includes ECU, harness, throttle pedal, and sensors.

Performance Highlights

• Horsepower & Torque: 530 HP / 495 FT. LBS.
• Compression Ratio: 10.7:1 – Optimized for premium pump gas.
• Camshaft Specs:
  • Lift: .612" intake / .585" exhaust.
  • Duration (@ .050): 225° intake / 238° exhaust.
  • Lobe Separation Angle: 113° for a broad powerband and smooth drivability.
• Cylinder Heads:
  • 72cc combustion chambers for optimized compression.
  • 2.165" intake valves and 1.600" exhaust valves for exceptional airflow.
  • 259cc intake runners and 102cc exhaust runners maximize breathing.

Built for Power and Durability

Block Features:

• BluePrint High-Strength Cast Iron Block:
  • Extended cylinder skirt and improved water jacket design for reliability.
  • 6-bolt mains ensure stability under high stress.
  • Priority main oiling system enhances lubrication for extreme performance.

Rotating Assembly:

• Nodular Iron Crankshaft with a 3.622" stroke for durability.
• Forged 6.098" Connecting Rods with 150,000 PSI bolts for extra strength.
• Hypereutectic Pistons for reliability in high-compression applications.

Why Choose the BluePrint LS 376 ProSeries Deluxe Engine?

This engine is ideal for builders who want the perfect combination of power, style, and versatility:

• Sleek Black Pulley Kit: Complements modern and classic builds alike.
• Fuel Injection: Delivers smooth throttle response and improved drivability.
• Turn-Key Setup: Includes a complete accessory drive and engine controller for easy installation.

Whether it’s a resto-mod Camaro, a track-ready Corvette, or a street-focused C10, this engine brings style and performance to any project.

Key Specifications:

• Horsepower: 530 HP
• Torque: 495 FT. LBS.
• Induction: Fuel injection with DBW throttle body and loaded intake manifold.
• Front Accessory Drive: Includes alternator, power steering pump, water pump, and A/C compressor in a sleek black finish.

Important Notes:

• Customer Fitment Responsibility: While this low-profile accessory drive fits most applications, verify clearances and compatibility with your vehicle.
• Additional fittings, hoses, or minor fabrication may be required for certain installations.
