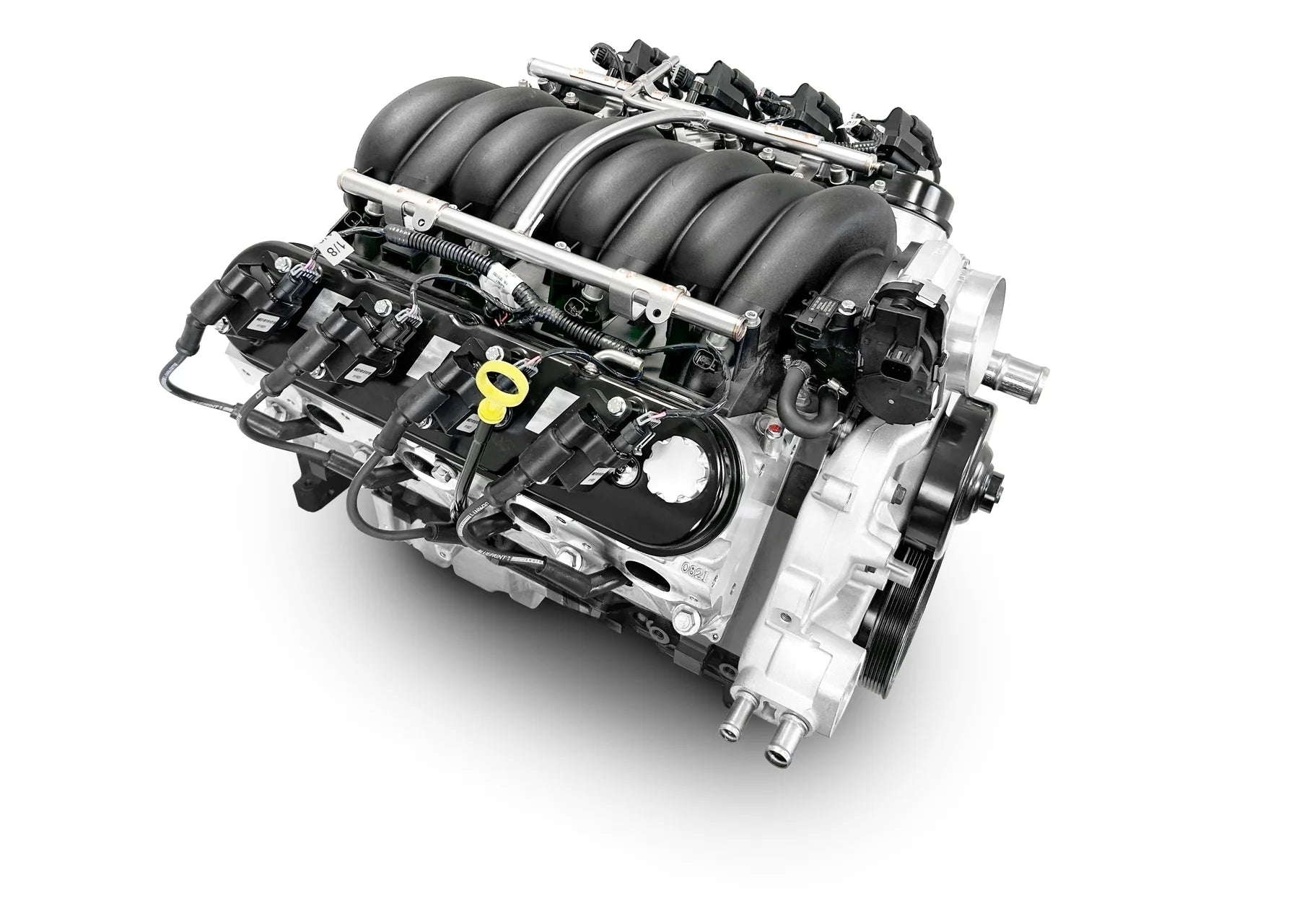

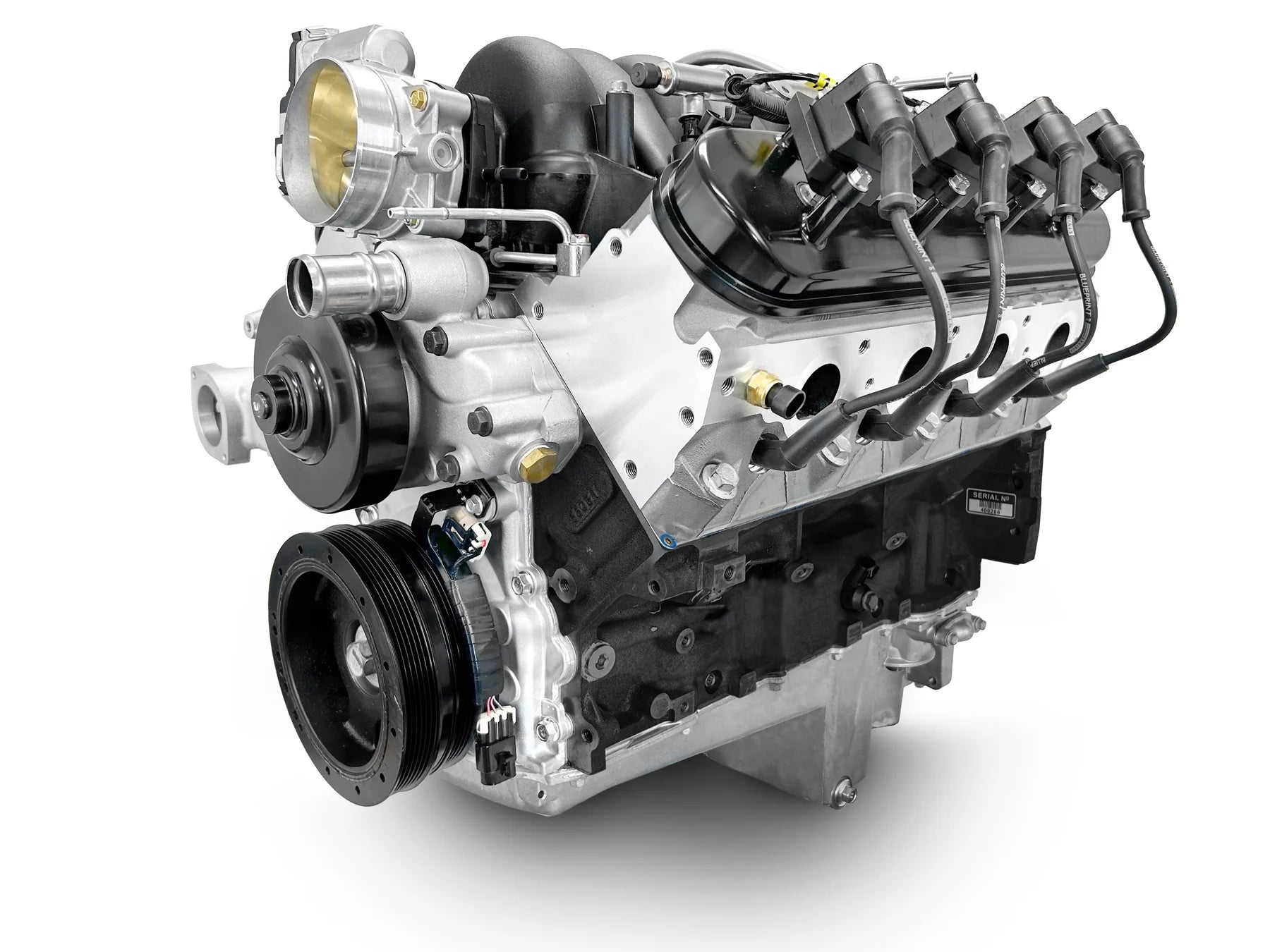

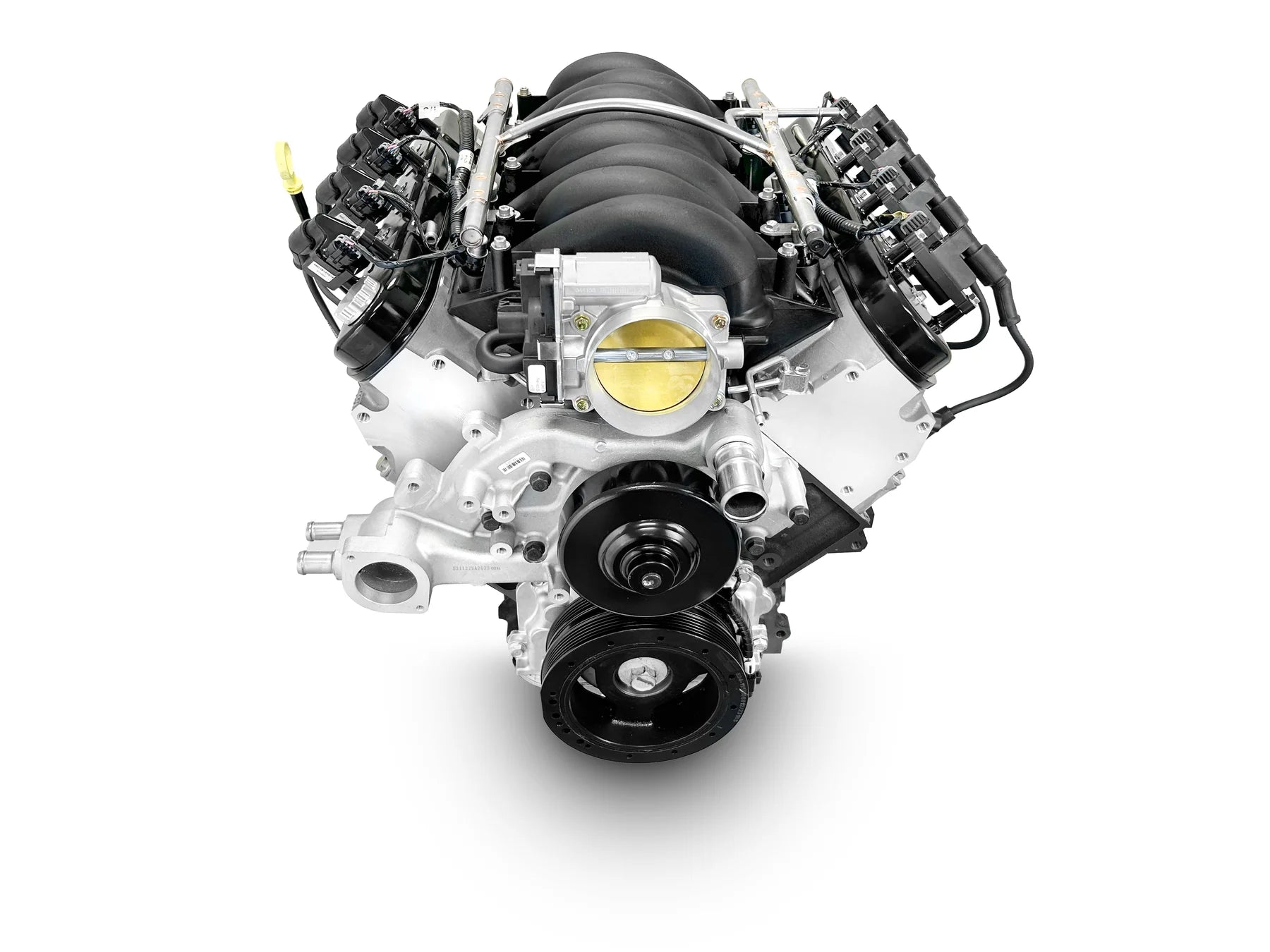

BluePrint GM LS 376 c.i. ProSeries Crate Engine – 530 HP, Fuel Injected, Base Dressed

530 HP of Modern LS Power – Perfect for Swaps and Custom Builds

The BluePrint GM LS 376 c.i. ProSeries Crate Engine is the ultimate upgrade for your Camaro, Corvette, C10, or Chevelle. Delivering an incredible 530 horsepower and 495 ft.-lbs. of torque, this fuel-injected LS engine combines cutting-edge performance with reliable durability. Built on a high-strength cast iron block and featuring BluePrint LS3 aluminum heads, this base dressed engine is ready to transform your project into a street, track, or off-road monster.

What’s Included?

This base dressed engine comes fully equipped with:

• GM Plastic Intake Manifold with fuel injectors and rail for optimized fuel delivery.
• Drive-By-Wire Throttle Body for precise throttle response.
• Complete Engine Controller: Includes ECU, harness, throttle pedal, and sensors for easy integration.
• Coil Packs, Spark Plugs, and Wires to ensure consistent ignition.
• LS Swap Oil Pan, Water Pump, and Harmonic Balancer for a complete, ready-to-install package.

Performance Highlights

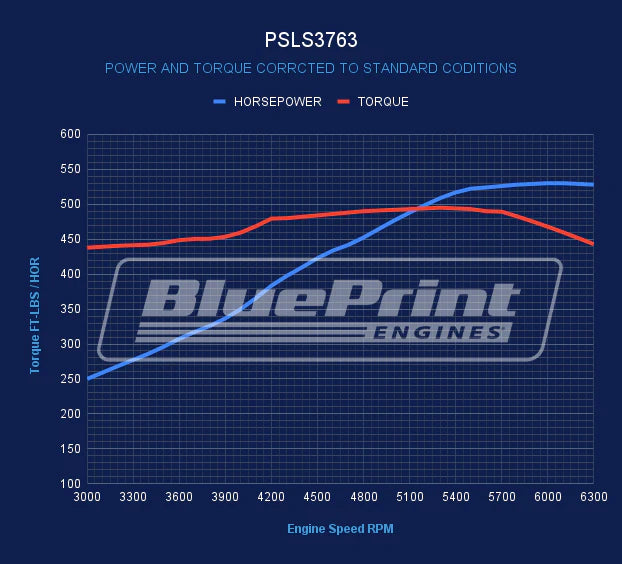

• Horsepower & Torque: 530 HP / 495 FT. LBS.
• Compression Ratio: 10.7:1 – Optimized for premium pump gas.
• Camshaft Specs:
  • Lift: .612" intake / .585" exhaust.
  • Duration (@ .050): 225° intake / 238° exhaust.
  • Lobe Separation Angle: 113° for a wide powerband and smooth drivability.
• Cylinder Heads:
  • 69cc combustion chambers for efficient compression.
  • 2.165" intake valves and 1.590" exhaust valves for superior airflow.
  • 259cc intake runners and 102cc exhaust runners maximize engine breathing.

Built for Durability and Versatility

Block Features:

• BluePrint High-Strength Cast Iron Block:
  • Designed for durability with increased deck thickness and strength webbing.
  • Priority main oiling ensures reliability under high-performance conditions.
  • 6-bolt mains and a 4.0662" bore deliver exceptional stability and longevity.

Rotating Assembly:

• Nodular Iron Crankshaft with a 3.622" stroke for smooth power delivery.
• Forged 6.125" Connecting Rods with 150,000 PSI bolts for extreme strength.
• Hypereutectic Pistons for high-compression performance and reliability.

Perfect for Chevy Builds

This engine is ideal for enthusiasts looking to modernize their classic Chevy or enhance their custom project. Whether you’re building a track-ready Camaro, a resto-mod Corvette, or a street-ready C10, the BluePrint LS 376 ProSeries Engine offers the power and versatility to meet your needs.

Key Specifications:

• Horsepower: 530 HP
• Torque: 495 FT. LBS.
• Induction: Fuel injection with GM plastic intake manifold and DBW throttle body.
• Controller Included: Complete ECU, harness, throttle pedal, and sensors for integration.

Important Notes:

• The included engine controller is not capable of transmission control. A separate transmission controller is required for automatics.
• Designed for flexibility in LS swaps, but confirm compatibility with your project.
