BluePrint GM LS 376 c.i. ProSeries Crate Engine – 530 HP, Base Dressed, Fuel Injected

530 HP of Fuel-Injected LS Power – Ready for Your Build

Bring modern LS performance to your classic project or custom build with the BluePrint GM LS 376 c.i. ProSeries Crate Engine. This fuel-injected powerhouse delivers a stunning 530 horsepower and 495 ft.-lbs. of torque, making it the perfect upgrade for Camaro, Corvette, C10, or Chevelle enthusiasts.

Designed with a high-strength cast iron block, LS3 aluminum heads, and a hydraulic roller cam, this engine blends durability with cutting-edge technology. Whether you’re chasing track times, carving corners, or cruising down Main Street, the ProSeries LS 376 has the power and reliability to meet your needs.

What’s Included?

This base dressed engine comes fully equipped for easy installation:

• GM Plastic Intake Manifold with fuel injectors and rail.
• Drive-By-Wire (DBW) Throttle Body for precise throttle control.
• LS Swap Oil Pan for versatility across multiple platforms.
• Coil Packs, Spark Plugs, and Wires for consistent ignition.
• Water Pump and Harmonic Balancer for reliable performance.

Performance Highlights

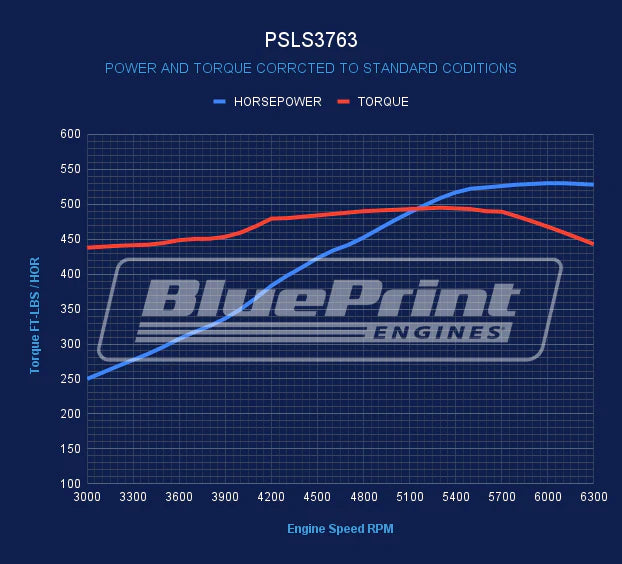

• Horsepower & Torque: 530 HP / 495 FT. LBS.
• Compression Ratio: 10.7:1 – Optimized for premium pump gas.
• Camshaft Specs:
  • Lift: .612" intake / .585" exhaust.
  • Duration (@ .050): 225° intake / 238° exhaust.
  • Lobe Separation Angle: 113° for a balanced power curve.
• Cylinder Heads:
  • 69cc combustion chambers for efficient compression.
  • 2.165" intake valves and 1.590" exhaust valves for superior airflow.
  • 259cc intake runners and 102cc exhaust runners for maximum breathing.

Built for Strength and Reliability

Block Features:

• BluePrint High-Strength Cast Iron Block:
  • Designed for durability with increased deck thickness and strength webbing.
  • Priority main oiling for superior lubrication under high stress.
  • 6-bolt mains and a 4.0662" bore ensure maximum stability.
  • Improved water jacket design for optimal cooling.

Rotating Assembly:

• Nodular Iron Crankshaft with a 3.622" stroke for smooth power delivery.
• Forged 6.125" Connecting Rods with 150,000 PSI bolts for extreme strength.
• Hypereutectic Pistons for reliability under high-compression conditions.

Why Choose the BluePrint LS 376 c.i. ProSeries Engine?

This engine is the ultimate upgrade for any classic Chevy, offering the perfect combination of raw power and modern efficiency. Whether it’s a Corvette resto-mod, a Camaro track car, a C10 street truck, or a Chevelle cruiser, this fuel-injected LS3 setup is ready to deliver.

Key Specifications:

• Horsepower: 530 HP
• Torque: 495 FT. LBS.
• Induction: Fuel injection with GM plastic intake manifold and DBW throttle body.
• Camshaft Type: Hydraulic roller for aggressive yet reliable performance.

Important Notes:

• This engine does not include an engine controller kit; it must be purchased separately to suit your application.
• Designed for flexibility in swaps and retrofits but confirm compatibility with your specific project.
